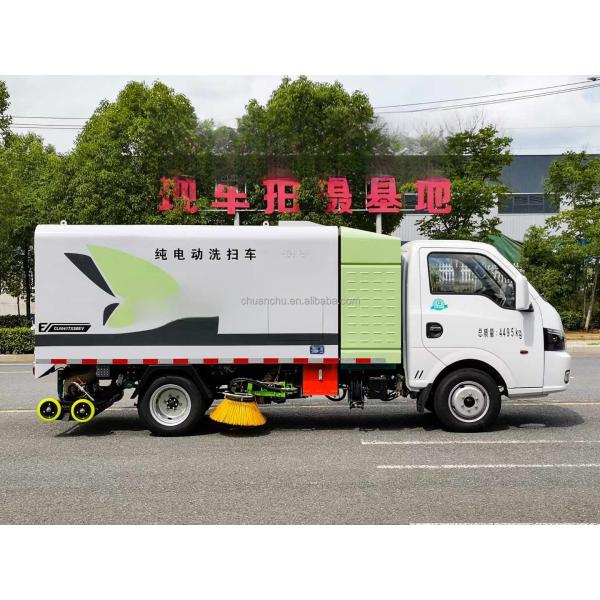

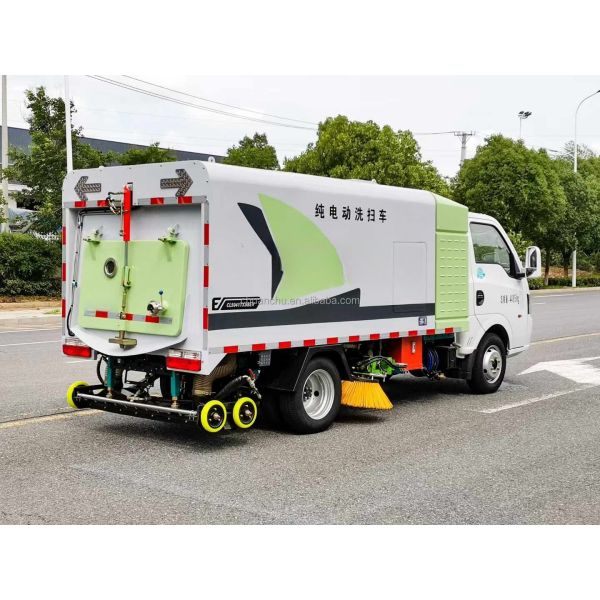

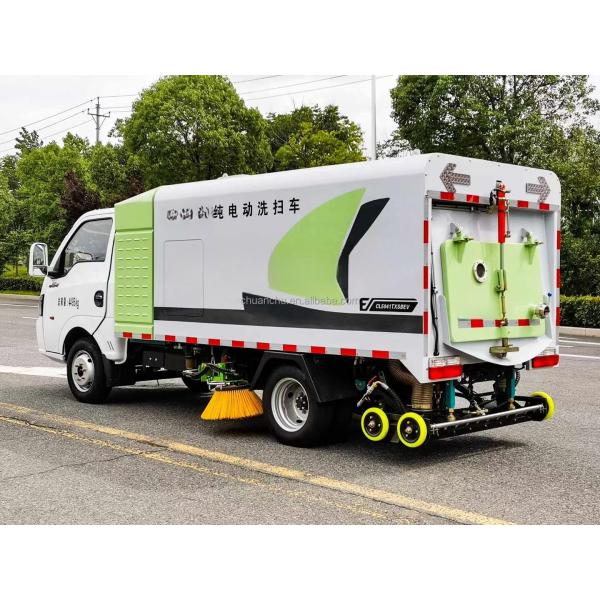

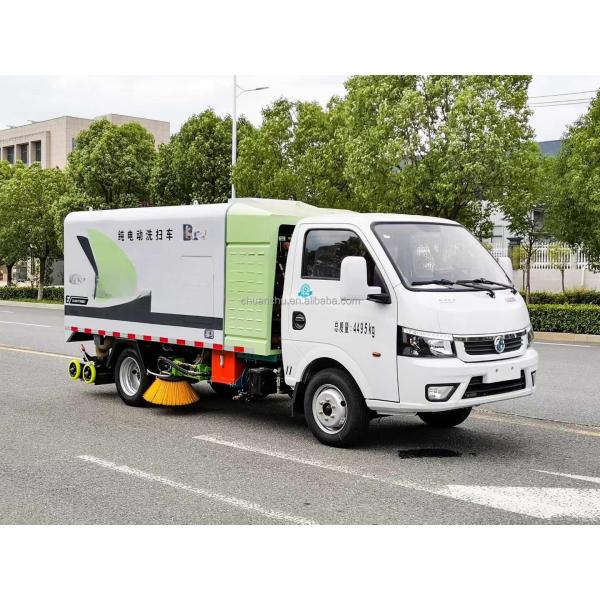

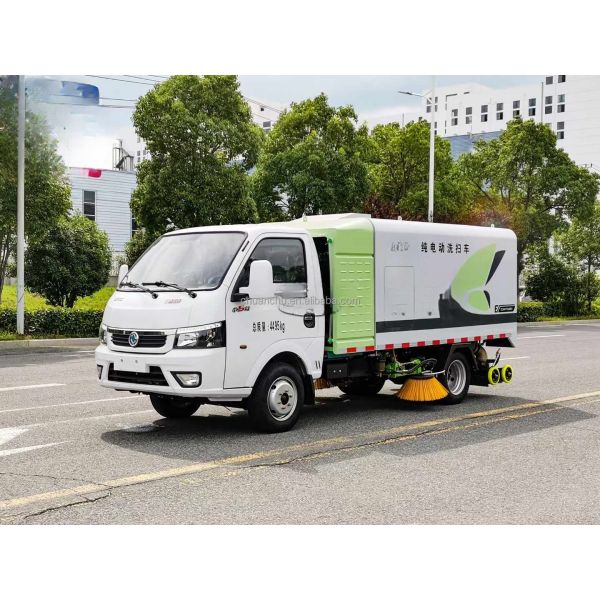

Pure Electric Dongfeng Small Multi-functional Road Sweeper
A high-efficiency electric road sweeper with low operating costs and excellent cleaning performance.
Technical Specifications
| Vehicle Technical Parameters |
| Product Name |
Pure electric cleaning truck |
Product Model |
HTT 5040TXSBSL |
| Gross Mass (Kg) |
4495 |
Production Address |
Suizhou City, Hubei Province |
| Rated Load Mass (Kg) |
545,745 |
Outline Dimension (mm) |
5620×1750,1730×2300,2200,2150,2080 |
| Curb Weight (Kg) |
3820,3620 |
Axle Weight |
1650/2845 |
| Number of Cab Members (person) |
2,3 |
Number of Axles |
2 |
| Approach Angle / Departure Angle (°) |
21/5 |
Front Suspension / Rear Suspension (mm) |
1190/1630 |
| Wheel Base |
2800,3000,3200,3400 |
Top Vehicle Speed (Km/h) |
110 |
| Chassis Technical Parameters |
| Chassis Model |
DFH1180EX8 |
Chassis Brand |
Truck Chassis |
| Number of Axles |
2 |
Number of Tires |
6 |
| Tyre Size |
185R15LT 8PR,6.00R15 10PR,6.00R15LT 10PR |
Number of Steel Plate Spring Sheets |
3/5 |
| Front Gauge (mm) |
1369,1387 |
Rear Track (mm) |
1242,1342 |
| Fuel Types |
Pure Electric |
ABS |
Yes |
| Chassis Wheelbase |
3300,3850 |
Upper Volume |
2.5 Square |
| Maximum Power of the Chassis Motor |
70KW |
Maximum Cleaning Capacity |
56000(㎡/h) |
| Battery Pack Rated Voltage |
386.4V |
Battery Capacity |
66KWH |
| Rated Power of the Mounted Motor |
20KW |
The Loading Consumes Power Per Hour |
15KWH |
| Charging Pile Power is Recommended |
120KW |
Charging Time |
About 0.5 hours |
After-Sales Service
If after-sales problems occur, please contact our customer service personnel immediately. We will promptly arrange personnel to solve the problem for you.
Company Profile
Hubei Huate Special Equipment Co., Ltd. is a manufacturer integrating the independent R&D, manufacturing, sales and import & export trading of special trucks and truck accessories. As a national high-tech enterprise and SRDI enterprise, we specialize in various vehicle series including dangerous goods tank trucks, chemical storage tanks, refrigerated trucks, emergency rescue vehicles, and sanitation vehicles.
Manufacturing Technique
Certifications
Customer Photos
Project Show
Product Packaging
Frequently Asked Questions
Q1. Payment Terms
T/T: 30% deposit, 70% balance before delivery. L/C available (L/C price higher than T/T price). We provide photos and video of finished truck before balance payment.
Q2. Delivery Terms
EXW, FOB, CFR, CIF, DAF, FCA, DDU, DAP available. We mainly handle FOB, CIF, DAF.
Q3. Delivery Time
Typically 10-20 days after receiving advance payment. Right-hand drive chassis require longer lead time than left-hand drive. Exact terms specified in contract.
Q4. Quality and Warranty
Strict quality control following state special trucks technical specifications. 100% testing before delivery. 12-month warranty with free spare parts within warranty period.
Q5. How to Trust Us?
BV factory audit certified. Third-party inspections welcome. 15+ years experience in truck manufacturing with excellent industry reputation.
Q6. Visiting Our Factory
Located in Suizhou City, Hubei Province. We provide pickup service from Wuhan railway station or Tianhe airport. Invitation letters available upon request with your company information.
